A pylon sign, also called pylon signage, is a tall freestanding sign mounted on one or two poles. The sign face sits high above the ground so that drivers can spot a business from hundreds of feet away. Gas stations, restaurants, hotels, and shopping centers use them to stand out along busy roads.
What Is a Pylon Sign?
A pylon sign has three parts: one or two steel poles, a sign face or cabinet mounted at the top, and an underground concrete foundation that supports the weight and wind load. The height is the point. Raising the face above buildings, trees, and other signs makes it readable from the road.
You'll also hear them called pole signs. Detroit's city sign guide treats pole and pylon signs as one group, a type of ground sign held up by poles that rest on the ground.
Pylon signs work best for businesses with fast-moving traffic and a building set back from the road. As a sign company in the Detroit metro area, we most often see them at gas stations, restaurants, hotels, car dealerships, shopping centers, and office parks along major roads.
What Are the Types of Pylon Signs?
Pylon signs differ by how they're supported, lit, and used. These are the six you'll see most.
Single pole pylon sign: One pole holds the face. It has the smallest footprint and usually costs the least, making it the classic choice for gas stations and roadside restaurants.
Double pole: Two poles add stability and support larger faces. Many shopping centers use them for wide, multi-panel signs.
Covered pole: Cladding hides the steel and matches the building. It gives the sign an architectural look without changing how it works.
Illuminated: Internal LEDs light the face for visibility at night. Many roadside pylons are lit.
Digital panels: LED message sections let you change offers or prices without new faces. Digital signs add cost and need electrical service.
Multi-tenant: Stacked panels list several businesses on one structure. Plazas, business parks, and medical centers use them to share visibility from the road.
See our exterior signs page for other freestanding options.
Pylon Sign vs Monument Sign
The main differences are height, support, and local regulations.
| Pylon sign | Monument sign | |
|---|---|---|
| Height | Often 20 to 50 feet | Roughly person height |
| Support | One or two poles | Solid base |
| Visibility | Hundreds of feet, above buildings and trees | Closer approach, entrances |
| Typical installed cost | $10,000–$100,000+ | $5,000–$30,000 |
| Best for | Roadside sites, highway exits, multi-tenant centers | Entrances, campuses, suburban streets |
| Local rules | Allowed by sign district in Detroit, restricted in some suburbs | Often required, as in Novi |
Pylons win on sight distance. Monuments usually win on approvals, cost, and curb appeal. Choose by road speed, setback, and local rules. If your city requires a monument base, a monument sign is the way to get roadside visibility without a variance.

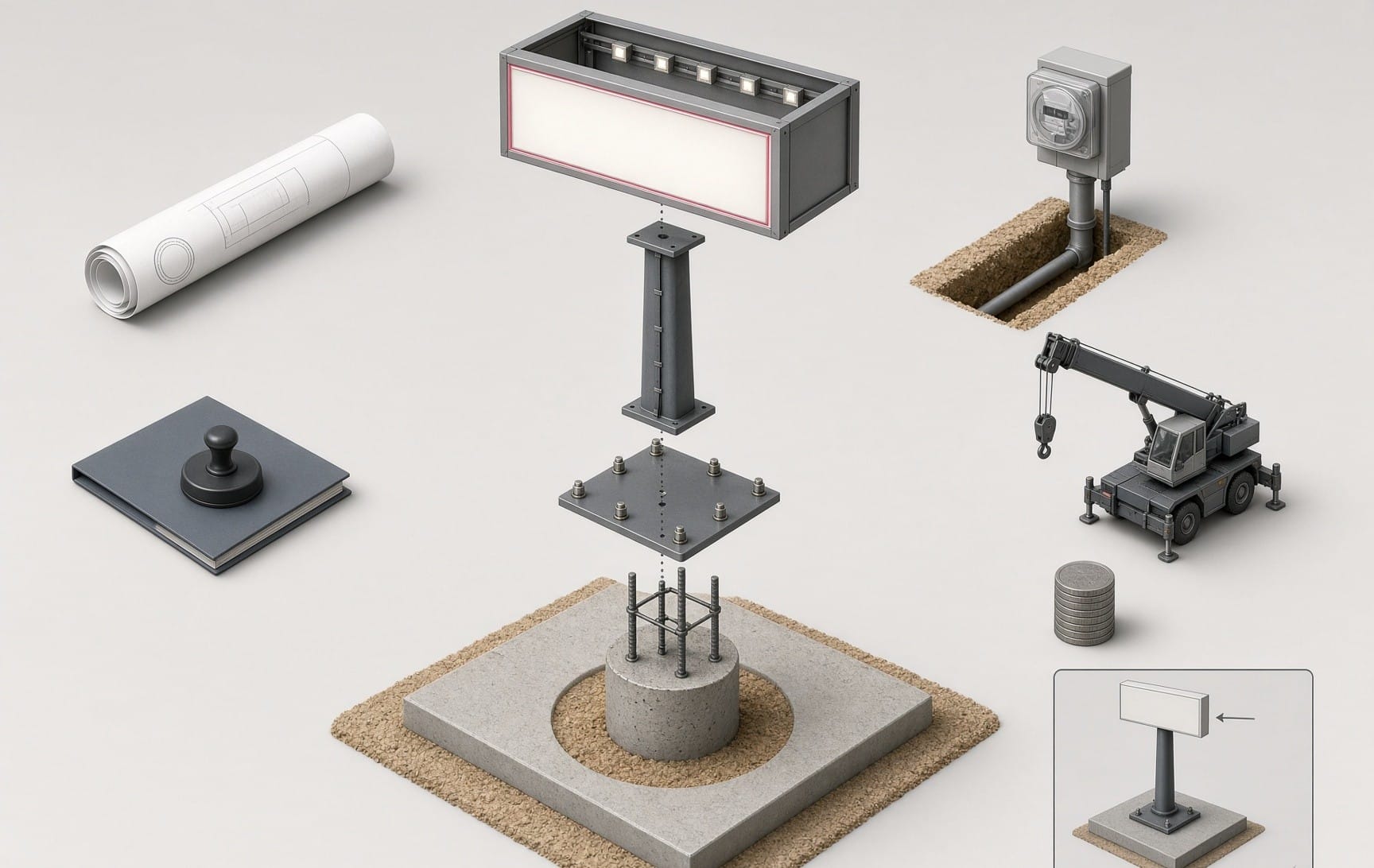

How Much Does a Pylon Sign Cost?
Most pylon signs cost $10,000 to $100,000 or more installed. A single-pole sign with a small face sits at the low end. Tall, lit, multi-tenant, digital structures sit at the top, and the largest can exceed $100,000.
Height and face size: Taller structures need heavier poles and deeper footings. Bigger faces add steel, material, and wind load.
Foundation: Foundation and site work often run $1,500 to $15,000 or more, depending on soil and structure size.
Engineering: Design and structural engineering often add $1,500 to $10,000.
Illumination and digital panels: LEDs, wiring, and message centers raise the price, and a lit sign adds about $20 to $100 a month in electricity.
Permits and installation: Permit costs vary by city. Novi's base sign fees total $90 before foundation and electrical permits, while national estimates run from $400 to $2,500. Cranes and lifts add equipment time.
Refacing an existing pylon with new faces on the same structure costs far less than building a new one. For comparison, monument signs typically run $5,000 to $30,000.
See our guide to what business signs cost in Michigan or our custom building signs page for related projects. Ask every sign company for an itemized quote that separates fabrication, foundation, engineering, permits, and installation so that you can compare bids line by line.
When Does Your Business Need a Pylon Sign?
You need one when drivers must spot your business from far away and nothing else gives them enough time.
Road speed: At 45 mph, a driver covers about 66 feet every second. Reading takes roughly half a second per word, so a four-word message takes about two seconds, or roughly 130 feet of road, just to read. The driver still needs room to slow down and turn.
Distance: A common rule of thumb is 1 inch of letter height for every 10 feet of viewing distance. Letters meant to be read from 150 feet should be about 15 inches tall.
Obstructions: Buildings, trees, overpasses, and neighboring signs can block a low sign. A raised face clears them.
Setback: The farther your building sits from the road, the less a wall sign helps. A raised face closes that gap.
Multiple tenants: Shopping plazas and business parks need one structure with room for several names. See our shopping plaza sign guide for how tenant panels work.
You may not need one if your road is slow, customers arrive on foot, or your city doesn't allow poles. A monument or building sign often does the job.
Do You Need a Permit for a Pylon Sign in Michigan?
Yes. A pylon sign needs a sign permit and usually a foundation permit. If it's lit, it also needs an electrical permit. Every city sets its own rules, so check yours before you design anything.
Most cities follow a similar path: confirm zoning and sign district rules, submit drawings with your application, get a building permit for the foundation with engineered drawings, pull an electrical permit for lighting, secure any right-of-way approval, and pass inspections.
Novi: Ground signs must sit on a monument base with no exposed posts, so a traditional pole-mounted pylon generally needs a zoning variance. The foundation needs its own building permit with two signed and sealed engineered drawings, and illuminated signs need an electrical permit.
Detroit: Pole and pylon signs are allowed depending on the sign district where your property sits. Only a sign professional with a current City of Detroit sign license can apply, and each sign needs its own application. After installation, the city inspects the sign and issues a certificate of acceptance.
Elsewhere in Michigan, rules differ by city. A zoning variance is the usual route when a pole sign isn't allowed by right. Our monument signs are the alternative when a variance isn't realistic.

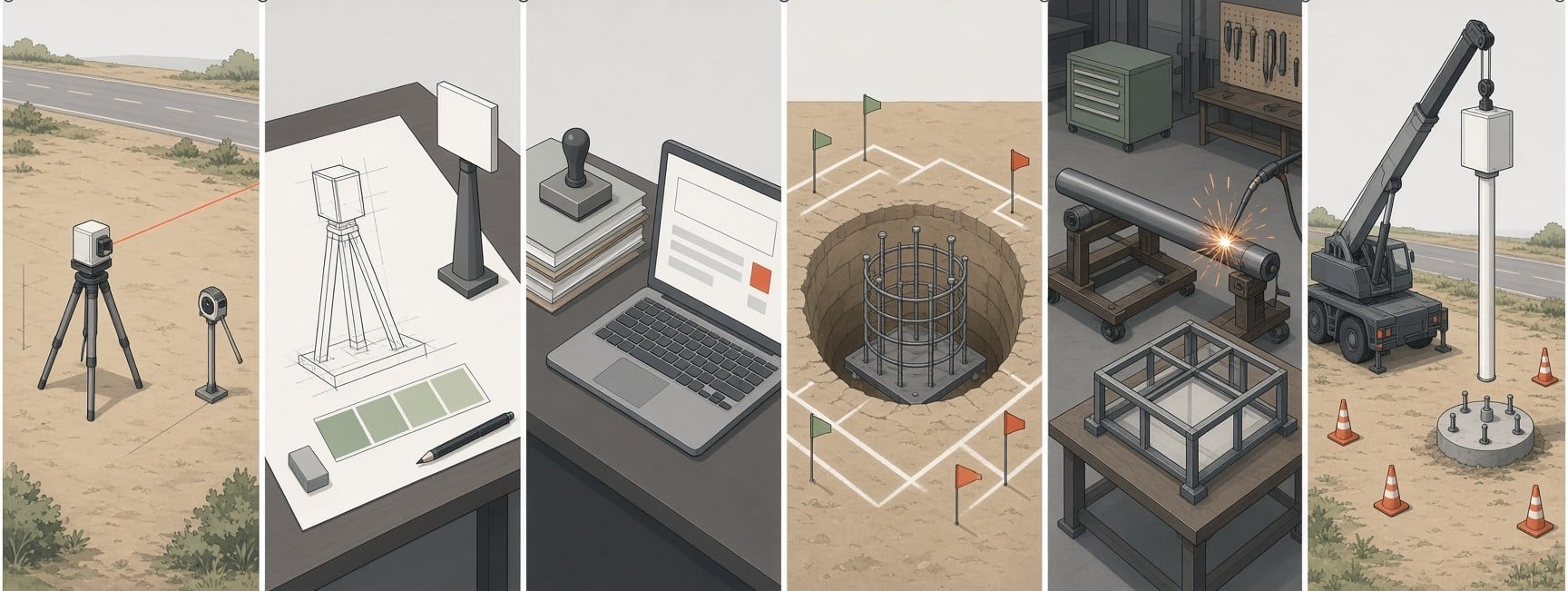

How Do We Build a Pylon Sign?
A pylon sign project runs in six steps, handled by one team.
1. Survey: We measure the site, check sight lines, setbacks, and power, and photograph the location.
2. Design: We design the face and structure to your brand colors and your city's size limits.
3. Permits: We prepare drawings and file the sign, foundation, and electrical applications. In Detroit, we line up the licensed filer.
4. Foundation: Before any digging, we call MISS DIG 811 at least three business days ahead so underground utilities get marked. Then the footing goes in, built to the engineered drawings.
5. Fabrication: We build the poles, cabinet, and face, mostly in-house.
6. Installation: A crane or lift sets the structure, and a licensed electrician makes the final connection on lit signs.
For questions to ask any sign company before you hire, see our hiring checklist.
Pylon Sign FAQ
What is a pylon sign?
A pylon sign is a tall freestanding sign mounted on one or two poles, with the face raised high above the ground. It's built for drivers to read from a distance, so it's common at gas stations, restaurants, hotels, and shopping centers. Detroit's sign guide also calls it a pole sign.
How much does a pylon sign cost?
Most pylon signs cost $10,000 to $100,000 or more installed. Height, face size, lighting, digital panels, the foundation, and engineering set the price. Multi-tenant and digital structures cost the most. Refacing an existing pylon costs far less than building a new one.
How tall can a pylon sign be?
Your city and sign district set the limit. Pylon signs often run 20 to 50 feet, but some Michigan suburbs restrict pole signs and require lower monument signs instead, as Novi does. Check your local sign ordinance before designing, or ask us to confirm the rules for your address.
Can a pylon sign be lit?
Yes. Many pylon signs use internal LED lighting, and some add digital message panels. A lit sign needs an electrical permit and a licensed electrical connection, and it adds roughly $20 to $100 a month in electricity. Lighting keeps the sign readable after dark.
Do I need a permit for a pylon sign?
Yes. Expect a sign permit, a foundation permit with engineered drawings, and an electrical permit if the sign is lit. In Detroit, only a licensed sign professional can apply, one application per sign. In Novi, ground signs need a monument base, so poles usually need a variance.
